圓形整體CBN切槽刀
發布單位: 立方氮化硼刀具,CBN刀片,陶瓷刀片,HLCBN刀具 . 所屬類別: 整體式CBN刀具 . 點擊查閱: 18791 次.
圓形整體CBN切槽刀簡介:
大量用于軋輥景顷，回轉支承等行業。
|
  |
|
型號 |
尺寸參數(mm) |
推薦刃口 |
牌號 |
配套刀桿 |
|
L |
φI.C |
S |
r |
BN-K1 |
BN-S20 |
BN-S200 |
BN-S300 |
BN-S10 |
|
RCMX060400Y |
6 |
6.35 |
4.76 |
|
S01020
S02020
S03020
S05020
S10020
S20020 |
● |
● |
◎ |
● |
● |
CRDCN |
|
RCMX060500Y |
6 |
6.35 |
5.56 |
|
● |
● |
◎ |
● |
● |
|
RCMX060600Y |
6 |
6.35 |
6.35 |
|
● |
● |
◎ |
● |
● |
|
RCMX060700Y |
6 |
6.35 |
7.94 |
|
● |
● |
◎ |
● |
● |
|
RCMX090700Y |
9 |
9.525 |
7.94 |
|
● |
● |
◎ |
● |
● |
|
RCMX120700Y |
12 |
12.7 |
7.94 |
|
● |
● |
◎ |
● |
● |
|
RCMX151000Y |
15 |
15.875 |
10 |
|
◎ |
◎ |
◎ |
◎ |
◎ |
|
RCMX191000Y |
19 |
19.05 |
10 |
|
◎ |
◎ |
◎ |
◎ |
◎ |
|
RCMX201200Y |
20 |
20 |
12 |
|
◎ |
◎ |
◎ |
◎ |
◎ |
|
RCMX251200Y |
25 |
25.4 |
12 |
|
◎ |
◎ |
◎ |
◎ |
◎ |
|
  |
|

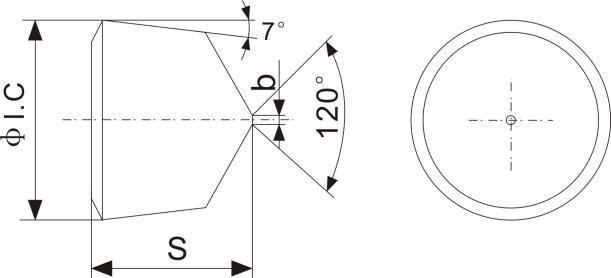

型號 |
尺寸參數(mm) |
推薦刃口 |
牌號 |
配套刀桿 |
|
L |
φI.C |
S |
r |
b |
BN-K1 |
BN-S20 |
BN-S200 |
BN-S300 |
BN-S10 |
|
RCMX060400V |
6 |
6.35 |
4.76 |
|
0.8 |
S01020
S02020
S03020
S05020
S10020
S20020 |
● |
● |
◎ |
● |
● |
CRDCN |
|
RCMX060500V |
6 |
6.35 |
5.56 |
|
0.8 |
● |
● |
◎ |
● |
● |
|
RCMX060600V |
6 |
6.35 |
6.35 |
|
0.8 |
● |
● |
◎ |
● |
● |
|
RCMX090700V |
9 |
9.525 |
7.94 |
|
1 |
● |
● |
◎ |
● |
● |
|
RCMX120700V |
12 |
12.7 |
7.94 |
|
2 |
● |
● |
◎ |
● |
● |
|
RCMX151000V |
15 |
15.875 |
10 |
|
2 |
● |
● |
◎ |
◎ |
● |
|
RCMX191000V |
19 |
19.05 |
10 |
|
2 |
● |
● |
◎ |
◎ |
● |
|
RCMX201200V |
20 |
20 |
12 |
|
2 |
● |
● |
◎ |
◎ |
● |
|
RCMX251200V |
25 |
25.4 |
12 |
|
2 |
● |
● |
◎ |
◎ |
● |
